SHADOWFI

DOI

SHADOWFI is an emulation-based fault injection framework for fault chareacterization and reliability assesemnt of hardware designs. SHADOWFI leverages the acceleration capabilities of hiperscale infrastructures providing support for executing long fault injection tasks in both High Performance Computing (HPC) and FPGA hiperscaler systems.

SHADOWFI implments fault instrumentation by inserting saboteur circuits directly on syntesizable HDL designs. This instrumentation is applied automatically based on user configurations, providing flexibility regarding the target components or hardware structures subject of evaluation.

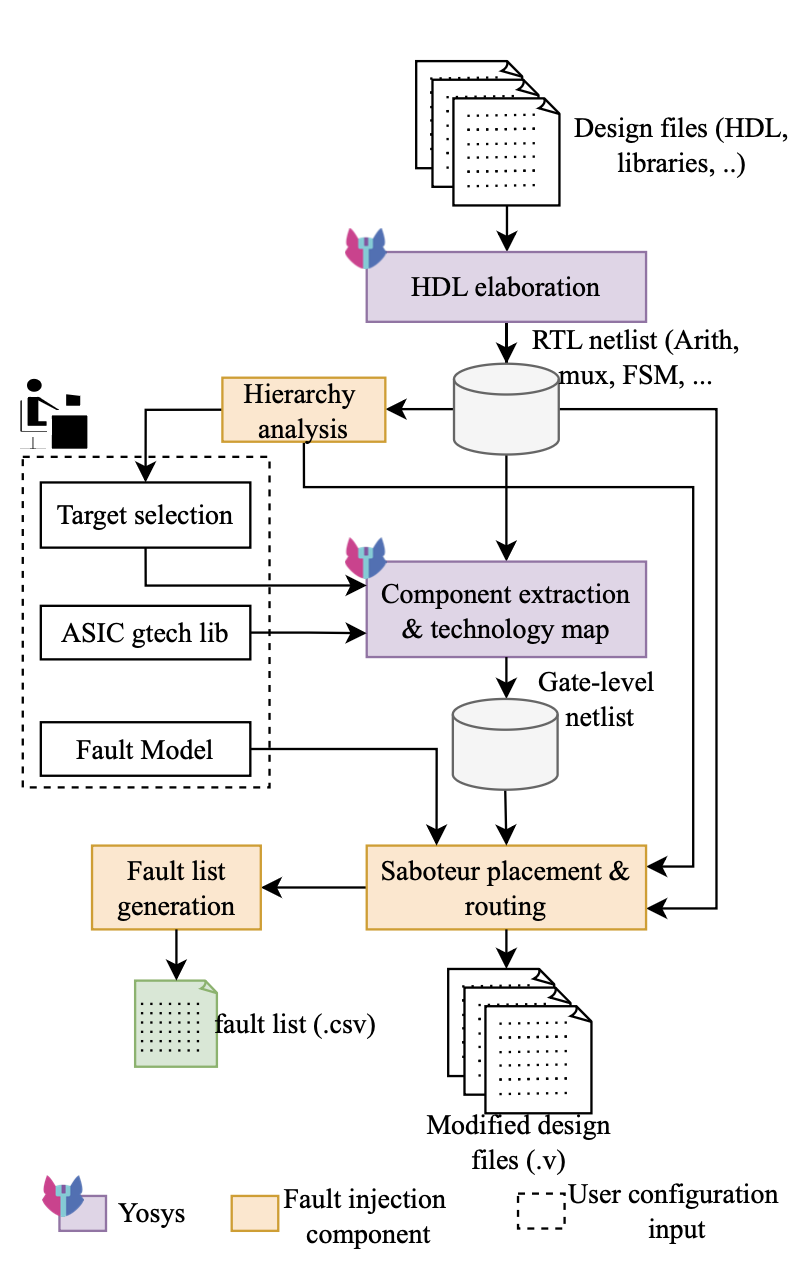

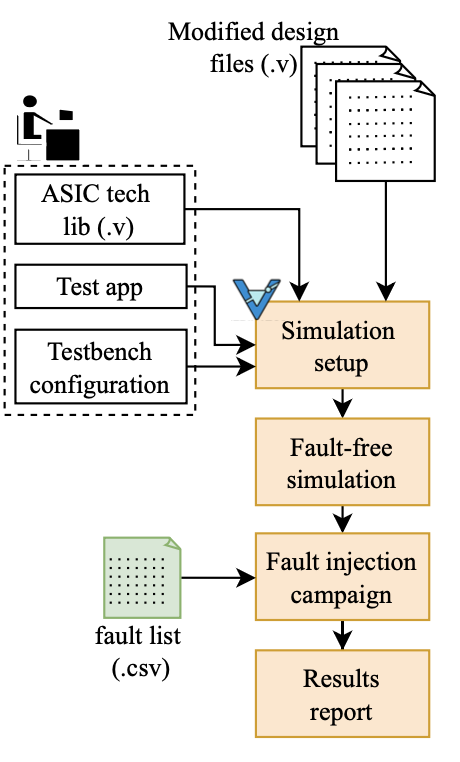

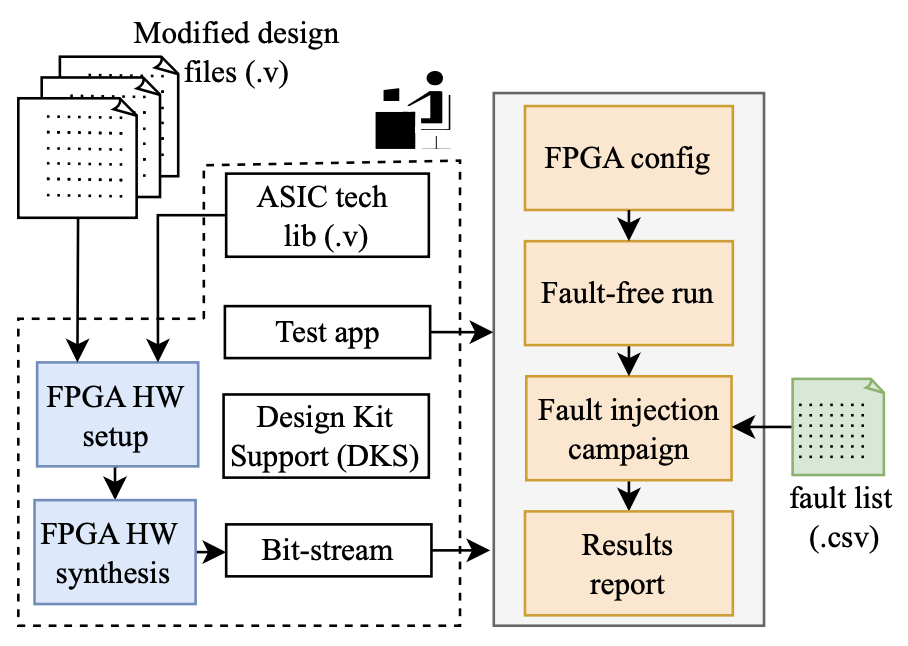

Fault instrumentation flow Fault simulation flow Fault emulation flow

SHADOWFI provides both a CLI and GUI interfaces to automate the configuration and setup of the fault injection campaigns. SHADOWFI incorporates two main workflows. The simulation workflow is mainly dedicated for executing fault injection workloads on HPC systems, whereas the emulation workflow accelerates the fault injection taks by using FPGA hiperscale systems.

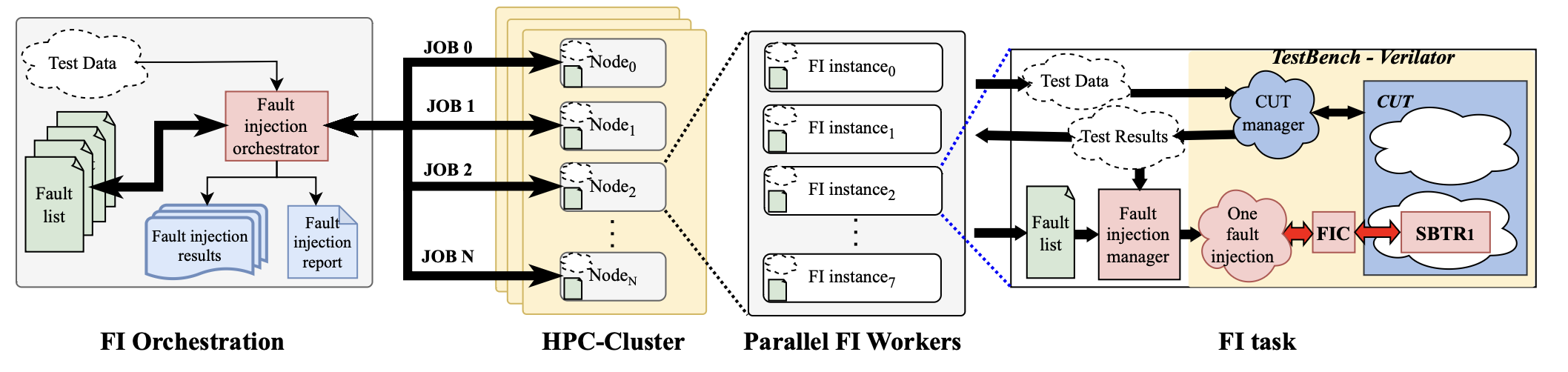

Simulation Workflow for deployment on HPC systems.

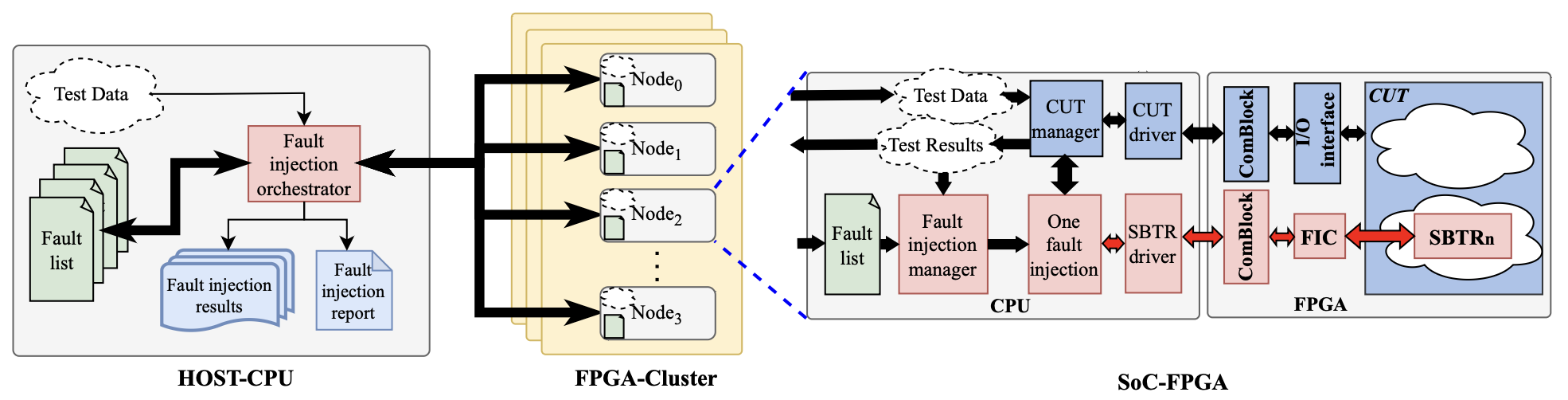

FPGA emulation Workflow for deployment on HyperFPGA system.

Host System Requirements

Getting Started with SHADOWFI on a local machine

This guide shows the basic steps for install and use SHADOWFI. You can follow any of the following procedures.

Instalation procedure

Option 1: Use a prebuild singularity container

  1. Install singularity on your machine or ensure that singularity is already installed in your system. Follow the indications presented in this link [https://docs.sylabs.io/guides/3.5/user-guide/quick_start.html. ]

  2. Clone the SHADOWFI repository

     git clone https://github.com/divadnauj-GB/shadowfi.git
 cd shadowfi

  3. Download the prebuild singuarity image with all dependencies

     singularity pull  --arch amd64 library://divadnauj-gb/shadowfi/shadowfi:v1

  4. Run SHADOWFI in CLI mode

     singularity run shadowfi_v1.sif
 # the following prompt will appear

     "Welcome to the SHADOWFI Tool shell. Type help or ? to list commands."
 Shadowfi>

Option 2: Custom instalation

  1. Clone the SHADOWFI repository

     git clone https://github.com/divadnauj-GB/shadowfi.git
 cd shadowfi

  2. Download and install OSS CAD Suite, for a customize intalation you can also the guidelines introduced in https://github.com/YosysHQ/oss-cad-suite-build

     cd sif
 wget https://github.com/YosysHQ/oss-cad-suite-build/releases/download/2024-11-17/oss-cad-suite-linux-x64-20241117.tgz
 # uncompress into the current directory
 tar -xvzf oss-cad-suite-linux-x64-20241117.tgz
 # Add environmental variables to .bashrc
 PWD=`pwd`
 echo "export PATH=\$PATH:${PWD}/oss-cad-suite/bin" >> ~/.bashrc
 source ~/.bashrc
 cd -

  3. Create a conda environmet with all the necesary packages

     conda create -n SHADOWFI python=3.11
 conda activate SHADOWFI
 pip install -r requirements

  4. Run SHADOWFI in CLI mode

     conda activate SHADOWFI
 python shadowfi_shell.py
 # the following prompt will appear
 "Welcome to the SHADOWFI Tool shell. Type help or ? to list commands."
 Shadowfi>

Option3: Build your own singularity container

  1. Clone the SHADOWFI repository

     git clone https://github.com/divadnauj-GB/shadowfi.git
 cd shadowfi

  2. Build the singularity image: For a different OSS CAD Suite version please modify the oss-cad-link and version on the shadowfi.def file

     # This automatically download and integrate OSS CAD on the image
 sudo singularity build shadowfi.sif ./sif/shadowfi.def

  3. Run SHADOWFI in CLI mode

     singularty run shadowfi.sif
 # the following prompt will appear

     "Welcome to the SHADOWFI Tool shell. Type help or ? to list commands."
 Shadowfi>

Executing the first Fault Injection Campaign

The following sequence of steps illustate the interactive use of SHADOFI across a sequence of steps.

  1. Run the CLI interface by typing the following command:

    • For singularity enabled systems

        singularity run shadowfi_v1.sif

    • For local instalation NO singularity

        # When not using singularity run the following commands
  conda activate SHADOWFI
  python shadowfi_shell.py

  2. Create a new project:

     Shadowfi> create --name TCU --design-config ./config/TCU/design_config.yml
 [2025-07-25 03:51:38] INFO - Config copied to /home/test_env/shadowfi/projects/TCU/config.yaml
 Configuration saved to /home/test_env/shadowfi/projects/TCU/config.yaml
 [2025-07-25 03:51:38] INFO - Project TCU created at /home/test_env/shadowfi/projects/TCU
 Shadowfi>

    After executing this command the project TCUis created under the projectsdirectory. The following corresponds to the project directory structure:

     ./projects/
   └── TCU/
       ├── config.yaml # The project information
       ├── logs/ #directory with final fault simulation results
       ├── sbtr/ #modified CUT files
       ├── src/ #temporary source files
       └── work/ # work directory

  3. Elaborate the project:

     Shadowfi> elaborate
 ...
 Warnings: 1 unique messages, 1 total
 End of script. Logfile hash: 9633524f2a, CPU: user 0.08s system 0.02s, MEM: 17.46 MB peak
 Yosys 0.47+61 (git sha1 81011ad92, clang++ 18.1.8 -fPIC -O3)
 Time spent: 48% 2x read_verilog (0 sec), 16% 2x write_json (0 sec), ...
 Hierarchy saved to hierarchy.json
 [2025-07-25 03:53:06] INFO - Elaboration completed.
 Shadowfi>

  4. Configure the fault instrumentation and run saboteur placing and routing:

     Shadowfi> pnr --cmp-sel hierarchy --user-cmp-sel ./config/TCU/target_modules_3k.yml
 ...
 Hierarchy saved to hierarchy.json
 [2025-07-25 03:54:35] INFO - Number of target components: 1, Total bit shift: 1534
 Configuration saved to /home/test_env/shadowfi/projects/TCU/config.yaml
 [2025-07-25 03:54:35] INFO - Place and Route completed.
 Shadowfi>

  5. Configure and compile the testbench simulation:

     Shadowfi> tb_setup --tb-config ./config/TCU/tb_config.yml
 ...
 make[1]: Leaving directory '/home/test_env/shadowfi/benchmarks/Cores/TCU/TCU_2/tb/obj_dir'
 - V e r i l a t i o n   R e p o r t: Verilator 5.031 devel rev v5.030-78-g5470cf9fa
 - Verilator: Built from 1.654 MB sources in 25 modules, into 17.552 MB in 25 C++ files needing 0.018 MB
 - Verilator: Walltime 38.198 s (elab=0.288, cvt=4.225, bld=33.160); cpu 5.488 s on 8 threads; alloced 196.203 MB
 -- DONE -------------------------------------
 [2025-07-25 03:56:47] INFO - Simulation setup for project TCU completed successfully.
 Shadowfi>

  6. Configure the fault simulation:

     Shadowfi> fsim_setup --fsim-config ./config/TCU/sim_config.yml --run-script ./config/TCU/run.sh --sdc-check-script ./config/TCU/sdc_check.sh
 ...
 [2025-07-25 03:58:07] INFO - Setting up fault injection for project: TCU
 Configuration saved to /home/test_env/shadowfi/projects/TCU/config.yaml
 [2025-07-25 03:58:08] INFO - Fault injection setup for project TCU completed successfully.
 Shadowfi>

  7. Run the fault injection campaign:

     Shadowfi> fsim_exec
 ...
 [2025-07-25 03:32:40] INFO - Running command:  bash /home/test_env/shadowfi/projects/TCU/.parsims/.job0/run.sh
 [2025-07-25 03:32:42] INFO - Running command:  bash /home/test_env/shadowfi/projects/TCU/.parsims/.job0/sdc_check.sh
 0,d_unit0@adder0,fpadd_3_pipe,0,1534,5,0,0,Masked

 SDC: 0, Masked: 11
 Fault simulation finished
 [2025-07-25 03:32:42] INFO - Simulation execution complete.
 Shadowfi>

    NOTE: SHADOWFI supports a basic scripting support, therefore the previous steps can be executed automatically by executing the following command:

    • For singularity enabled systems

        singularity run shadowfi_v1.sif -s TCU.s

    • For local instalation NO singularity

        # When not using singularity run the following commands
  conda activate SHADOWFI
  python shadowfi_shell.py -s TCU.s

Getting Started with HPC simulations

  1. Clone the SHADOWFI repository

     git clone https://github.com/divadnauj-GB/shadowfi.git
 cd shadowfi

  2. Download the prebuild singuarity image with all dependencies

     singularity pull  --arch amd64 library://divadnauj-gb/shadowfi/shadowfi:v1

  3. Allocate the necesary computational resources on the HPC by creating and SLURM JOB. For this step it is crucial to configure the run_world.sh script.

    • Open the run_world.sh script and edit the SLURM config accordingly, here some guidelines.

        #!/bin/bash -l
  #SBATCH --job-name=ipcluster # set ay name to the job
  #SBATCH --nodes=16  #assign a given number of Nodes
  #SBATCH --ntasks-per-node=8 # select the number of tasks per node
  #SBATCH --cpus-per-task=1 # select the number of CPUs per task
  #SBATCH --mail-user=user@email.com # set an email
  #SBATCH --mail-type=ALL
  #SBATCH --time=04:00:00 # set a maximum JOB duration
  #SBATCH --qos= # set the qos according to the HPC system setting
  #SBATCH --partition= # set the partitions according to the HPC system setting
  #SBATCH --account= # set the account if required
  #SBATCH --output=ipcluster-log-%J.out
  #SBATCH --error=ipcluster-err-%J.out

    • Submit the job allocation on the HPC system

        sbatch run_world.sh -hpc

    • Wait until the HPC start executing the job, for that you can check the job status by executing the following command:

        squeue -u $USER

  JOBID    PARTITION     NAME     USER     ST    TIME     NODES NODELIST(REASON)
  18041943 boost_usr   ipcluste  jguerre1  R    1:28:00     16  lrdn[...]

  4. You can run an extensive fault simulation by editing any of the Shadowfi scripts, setting the number of parallel tast to be executed according to the parallel world size. The following configuration split the fault injection into 128 tasks and enable the execution on the HPC cluster.

     #TCU.s
 create --name TCU --design-config ./config/TCU/design_config.yml
 load --project-dir ./projects/TCU
 elaborate
 pnr --cmp-sel hierarchy --user-cmp-sel ./config/TCU/target_modules_3k.yml
 tb_setup --tb-config ./config/TCU/tb_config.yml
 fsim_setup --fsim-config ./config/TCU/sim_config.yml --run-script ./config/TCU/run.sh --sdc-check-script ./config/TCU/sdc_check.sh
 fsim_setup --noset-run-scripts --kwargs sim_config.tasks=128 sim_config.max_num_faults=-1
 fsim_exec --hpc

  5. Open tmux or screen and run SHADOWFI in an interactive SLURM JOB either using the CLI or executing an script as follows.

     srun -N 1 -n 1 -c 10 --account=<your-account> --partition=<target-partition> --time=<hh:mm:ss>  singularity run shadowfi_v1.sif -s TCU.s

    You will see something like:

     srun: job <SLURM_JOB_ID> queued and waiting for resources
 ...
 Executing: fsim_setup --noset-run-scripts --kwargs sim_config.tasks=20 sim_config.engines=20 sim_config.max_num_faults=10
 Parsed kwargs: {'tasks': 20, 'engines': 20, 'max_num_faults': 10}
 Configuration saved to /leonardo/home/userexternal/jguerre1/shadowfi/projects/TCU/config.yaml
 Executing: fsim_exec --hpc
 run_one_task_fault_simulation: 100%|██████████| 128/128 [00:15<00:00,  1.29tasks/s]
 run_one_task_fault_simulat[2025-07-27 02:21:32] INFO - Simulation execution complete.
 Fault simulation finished

  6. Release the resources from the HPC

     scancel -u $USER #This will cancell all jobs from the current user

Getting Started with FPGA emulations

Shadowfi has initial support for the HyperFPGA system, more information about the HyperFPGA can be found here. We are working to extend ShadowFI to other FPGAs as A Service (FAAS) systems such as AWS EC2, cloudFPGA among others.

The following steps will guide you on how to execute fault emulation of several benchmarks included by ShadowFI.

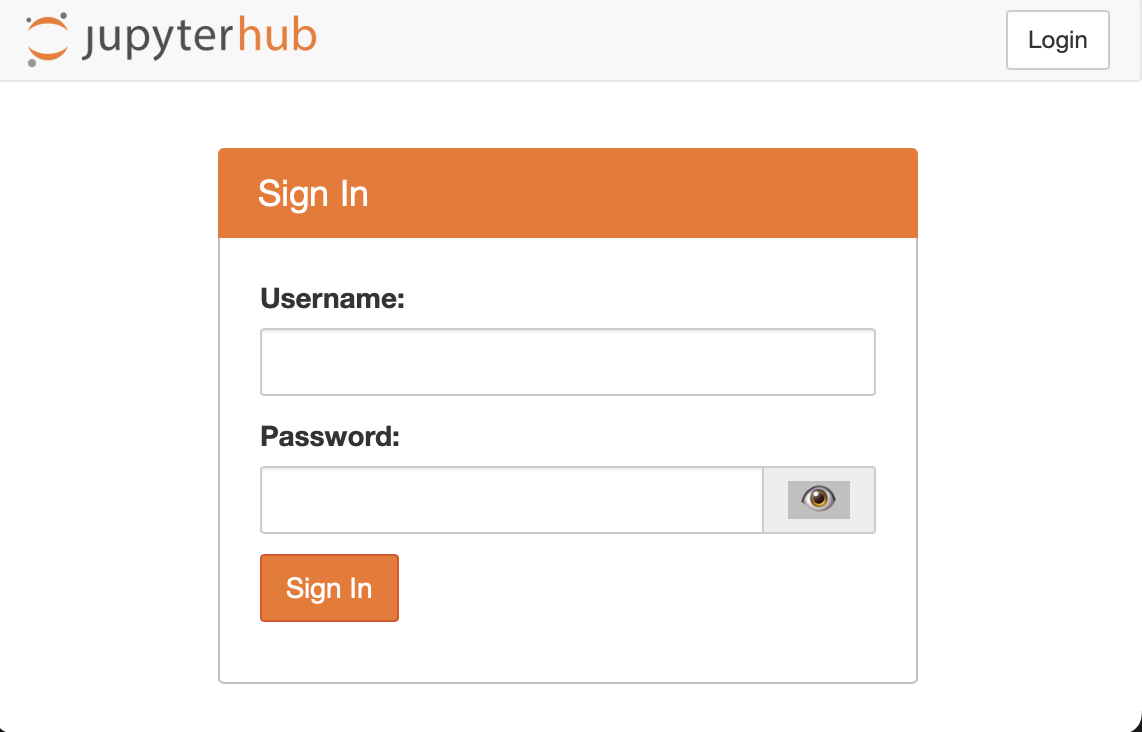

  1. Login into the HyperFPGA platform:

  2. Open a shell and clone the ShSHADOWFI repository

     git clone https://github.com/divadnauj-GB/shadowfi.git
 cd shadowfi

  3. Download and install OSS CAD Suite, for a customize intalation you can also the guidelines introduced in https://github.com/YosysHQ/oss-cad-suite-build

     cd sif
 wget https://github.com/YosysHQ/oss-cad-suite-build/releases/download/2024-11-17/oss-cad-suite-linux-x64-20241117.tgz
 # uncompress into the current directory
 tar -xvzf oss-cad-suite-linux-x64-20241117.tgz
 # Add environmental variables to .bashrc
 PWD=`pwd`
 echo "export PATH=\$PATH:${PWD}/oss-cad-suite/bin" >> ~/.bashrc
 source ~/.bashrc
 cd -

  4. Activate the conda environmet in HyperFPGA:

     conda activate python311

  5. Run SHADOWFI in CLI mode

     python shadowfi_shell.py
 # the following prompt will appear
 "Welcome to the SHADOWFI Tool shell. Type help or ? to list commands."
 Shadowfi>

Until here you have succesfully prepare ShadowFI for HyperFPGA integration. You can use interactiveley Shadowfi for inserting saboteurs on the target CUT. Let’s walk the the procedure for running a complete fault emulation on FPGA devices for the TCU benchmark.

  1. Execute the following commands either using the CLI interface or the scripting support in Shadowfi.

     Shadowfi> create --name TCU --design-config ./config/TCU/design_config.yml
 Shadowfi> load --project-dir ./projects/TCU
 Shadowfi>  elaborate
 Shadowfi> pnr --cmp-sel hierarchy --user-cmp-sel ./config/TCU/target_modules_3k.yml
 Shadowfi> fi_fpga_setup --emu-config ./config/TCU/emu_config.yml
 Shadowfi> fi_fpga_exec

    These commands will create, configure, compile and execute fault emulation flow automatically for the TCU benchmark. After executing the previous commands you will get promt messages on the terminal, the following indicates whether the process was successful or not. It is worth noting that executing the fi_fpga_setup will issue a vivado compilation process which may require approximately ~30 minutes, but this time my be longer or shorter depending on the evalauted benchmark.

     run_one_task_fault_free_emulation: 100%|█████████████████████████████████████████| 1/1 [00:00<00:00,  4.89tasks/s]
 [2025-07-30 12:03:33] INFO - <AsyncMapResult(run_one_task_fault_free_emulation): finished>
 [2025-07-30 12:03:34] INFO - Starting 1 engines with <class 'ipyparallel.cluster.launcher.SSHEngineSetLauncher'>
 [2025-07-30 12:03:37] INFO - ensuring remote mlabadm@192.168.0.16:.ipython/profile_ssh/security/ exists
 [2025-07-30 12:03:38] INFO - sending /home/jupyter-torino-user/.ipython/profile_ssh/security/ipcontroller-1753869813-kwr1-client.json to mlabadm@192.168.0.16:.ipython/profile_ssh/security/ipcontroller-1753869813-kwr1-client.json
 [2025-07-30 12:03:38] INFO - ensuring remote mlabadm@192.168.0.16:.ipython/profile_ssh/security/ exists
 [2025-07-30 12:03:38] INFO - sending /home/jupyter-torino-user/.ipython/profile_ssh/security/ipcontroller-1753869813-kwr1-engine.json to mlabadm@192.168.0.16:.ipython/profile_ssh/security/ipcontroller-1753869813-kwr1-engine.json
 [2025-07-30 12:03:39] INFO - Running `python3 -m ipyparallel.engine --profile-dir=/home/mlabadm/.ipython/profile_ssh`
 importing os on engine(s)
 importing unpack from struct on engine(s)
 importing Comblock from comblock on engine(s)
 run_one_task_fault_emulation: 100%|███████████████████████████████████████████████| 2/2 [00:00<00:00,  3.05tasks/s]
 [2025-07-30 12:03:50] INFO - <AsyncMapResult(run_one_task_fault_emulation): finished>
 [2025-07-30 12:03:50] INFO - Stopping engine(s): 1753869814
 [2025-07-30 12:03:54] INFO - fetching /tmp/tmpd_w2holx/ipengine-1753869819.3422.out from mlabadm@192.168.0.16:.ipython/profile_ssh/log/ipengine-1753869819.3422.out
 [2025-07-30 12:03:55] INFO - Removing mlabadm@192.168.0.16:.ipython/profile_ssh/log/ipengine-1753869819.3422.out
 [2025-07-30 12:03:55] INFO - Stopping controller
 [2025-07-30 12:03:55] INFO -  FPGA execution complete.

    Equivalent procedure can be follow for the other available benchmarks. Please refer to the documentation to properly configure the flow to any other design or application under test.
